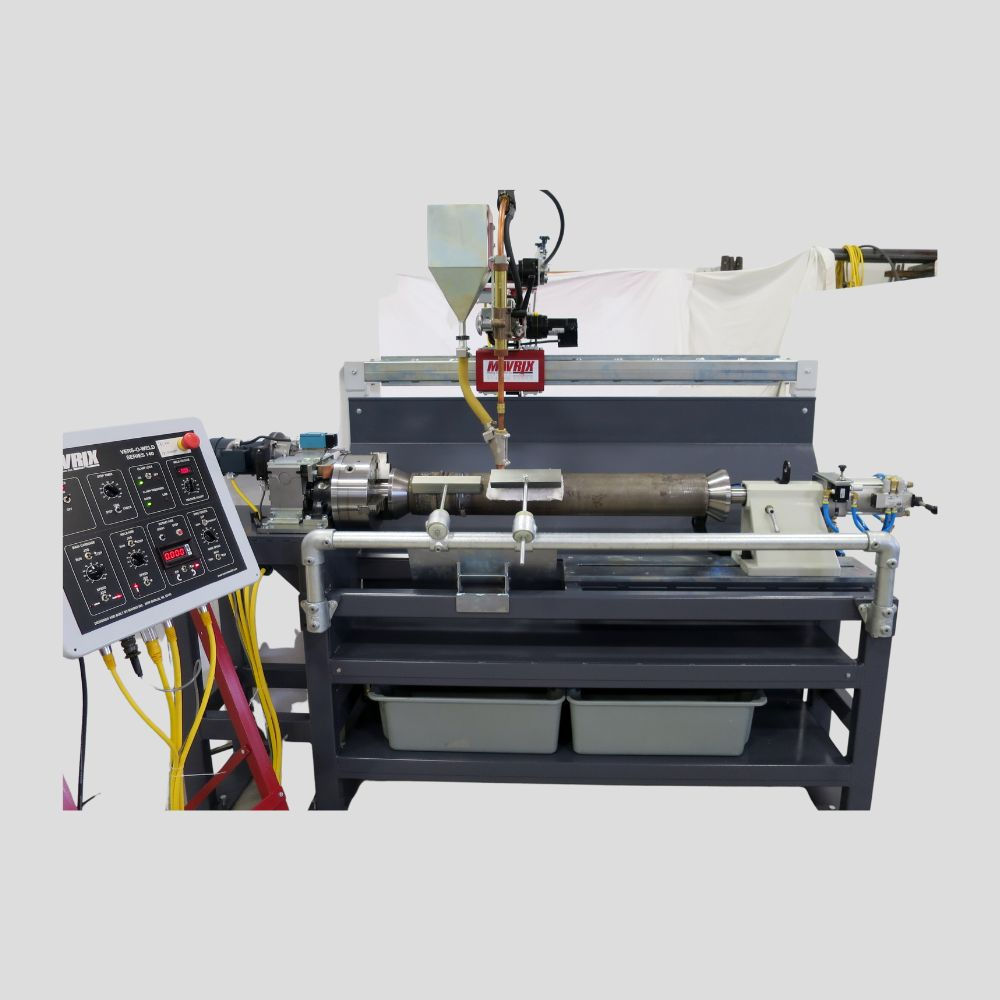

Small Platform Sub Arc Shell Roll Lathe

Small Platform Sub Arc Shell Roll Lathe

Small Platform Sub Arc Shell Roll Lathe



  • Welded Tubular Steel Frame Hand built to the customer requirements and finished with a durable industrial coating.



  • Pneumatic Tailstock The main beam angle can be adjusted to allow the torch to follow the required profile.



  • Wire Feeder The Mavrix PA-10 4 roll wire feeder and wire reel are mounted on the motorized carriage assembly.



  • Precision Speed Roll Rotation Headstock A precision low backlash motor-gearbox provides chuck rotation and indexing and is controlled by the Mavrix PLC based control. Includes a trip switch and rotary ground.



  • X/Y Automated Carriage System Two 90 VDC gearmotors provide X/Y motion of the carriage and weld arm. Capable of circumferentail and linear weld motion with precision indexing.
